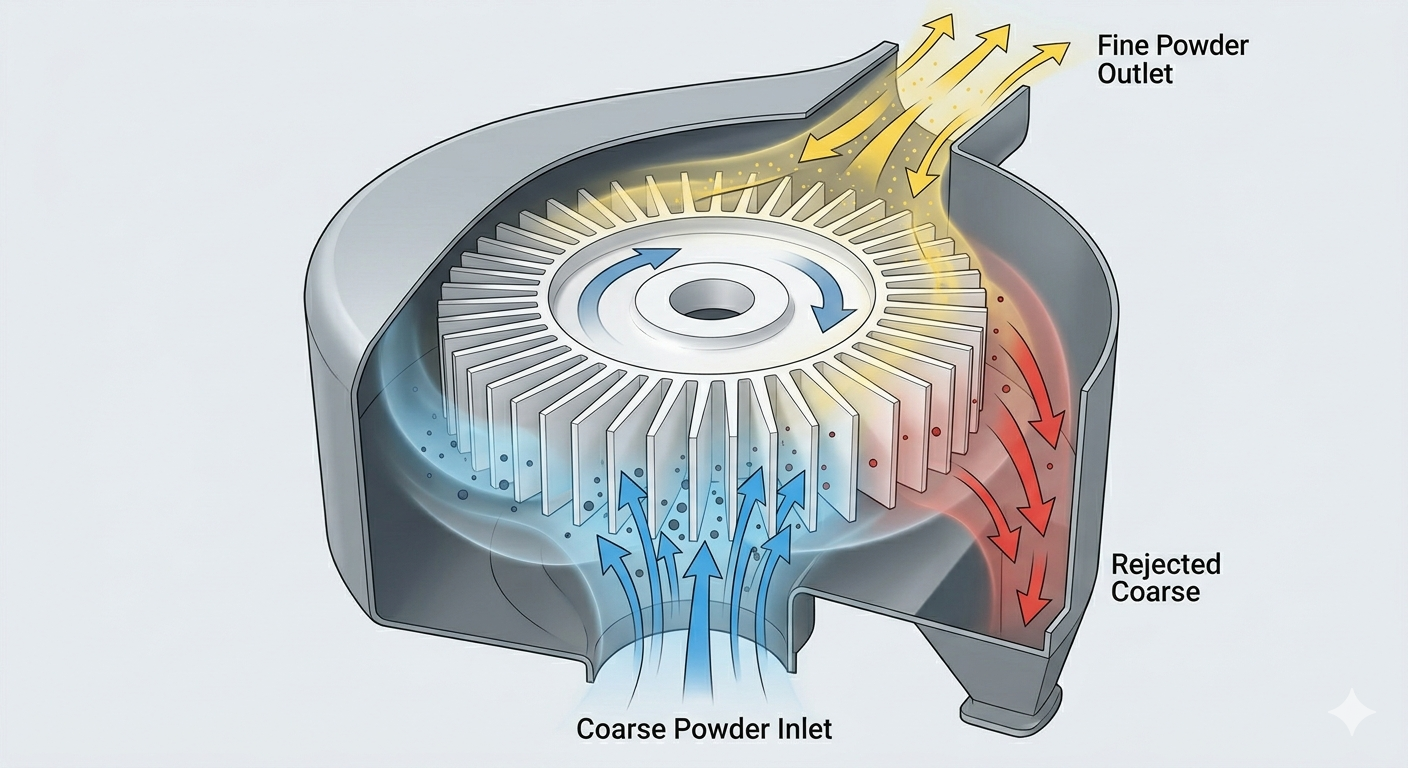

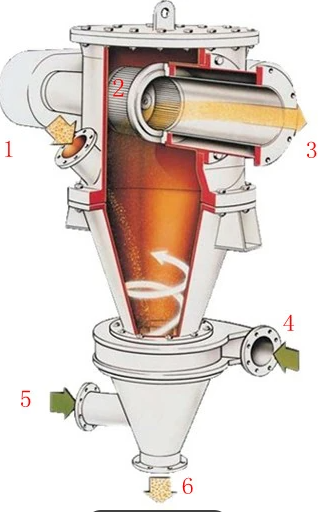

The Cut Point (d₅₀): Particles for which F_c ≈ F_d have a 50% probability of passing through the grading wheel. These particles define the classification cut point. By adjusting the rotational speed of the ceramic grading wheel (changing ω and thus F_c) or the air flow rate (changing F_d), operators can precisely tune the cut point to achieve the desired product particle size distribution (PSD).

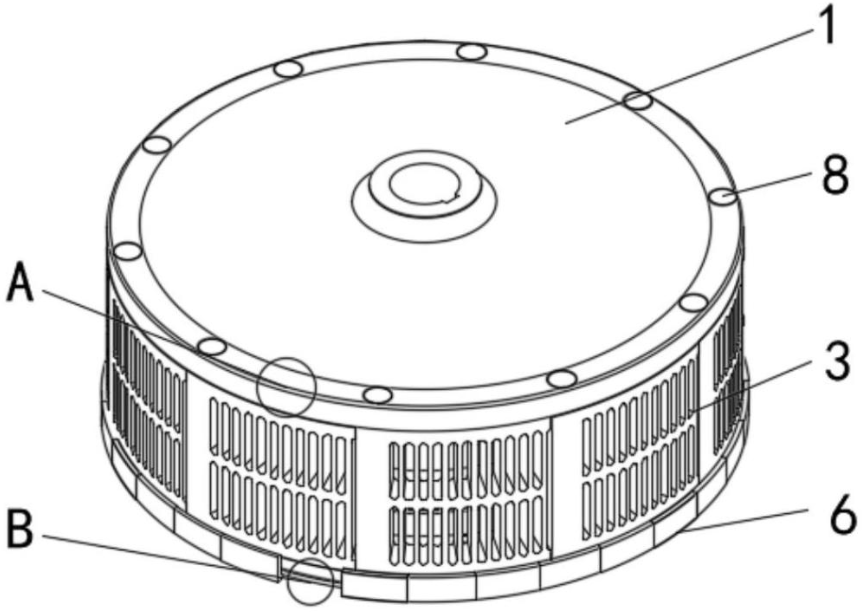

1. Blade Geometry and Count

The number of blades, their radial or backward-curved profile, and their chord length directly influence classification sharpness. More blades (typically 24-72 depending on wheel diameter) create narrower inter-blade channels, improving cut-point precision but potentially reducing throughput. Advanced blade profiles with aerodynamic leading and trailing edges minimize turbulence and improve energy efficiency.

2. Rotor Diameter and Aspect Ratio

Grading wheel diameters range from 50 mm for laboratory classifiers to over 600 mm for high-capacity industrial units. The aspect ratio (blade height to rotor diameter) affects the classification zone volume. Taller wheels with higher aspect ratios accommodate larger air volumes, enabling higher throughput without sacrificing classification precision.

3. Hub and Shaft Assembly

The central hub must provide precise concentricity and dynamic balance at operating speeds exceeding 10,000 RPM. Ceramic hubs with metal reinforcement inserts combine the wear resistance of ceramics with the structural integrity of steel. Precision-ground bearing seats and balanced assemblies ensure vibration-free operation over extended service intervals.

4. Surface Finish and Wear Protection

Ceramic blade surfaces are typically ground or polished to Ra < 0.8 um. Smooth surfaces reduce particle adhesion, prevent material build-up, and maintain consistent aerodynamic flow patterns. For highly abrasive applications, additional wear-resistant coatings or ceramic-metal composite construction may be employed on the leading edges of blades.

5. Air Seal Design

The gap between the rotating grading wheel and the stationary classifier housing is a critical design parameter. Labyrinth or gas-purged seals in this region prevent coarse particle bypass (short-circuiting), which would otherwise degrade classification efficiency. Ceramic seal rings provide extended service life in high-temperature or corrosive environments.

6. Modular and Replaceable Construction

Many modern ceramic grading wheels feature replaceable blade cartridges or segmental construction, allowing individual worn blades to be replaced without discarding the entire wheel. This modular approach significantly reduces maintenance costs and downtime. Quick-release hub designs enable complete wheel changes in under 30 minutes.

Sharper Cut-Point Definition

The precisely machined blade geometry of a ceramic grading wheel creates uniform flow channels with consistent aerodynamic conditions along the entire blade height. This uniformity means that every particle entering the classification zone experiences the same force balance, resulting in a steep Tromp curve (classification efficiency curve) with minimal overlap between fine and coarse populations. Typical ceramic grading wheels achieve imperfection values (I = d₇₅-d₂₅/2d₅₀) below 0.30, compared to 0.40-0.50 for mechanical classifiers.

Higher Operational Speed Range

Ceramic materials possess significantly higher specific stiffness (elastic modulus/density ratio) than metals. This allows ceramic grading wheels to operate at higher tip speeds without excessive centrifugal stress or deformation. Higher tip speeds translate directly to higher centrifugal forces, enabling finer cut points (down to submicron ranges for some designs) while maintaining classification sharpness. Zirconia wheels, for example, can reliably achieve cut points as fine as 0.5-2 um when paired with appropriate air flow management.

Reduced Recirculation and Energy Waste

Poor classification forces material to make multiple passes through the grinding circuit — a major source of energy waste in size reduction operations. By achieving near-ideal separation in a single pass, a high-efficiency ceramic grading wheel reduces the recirculating load, decreasing total specific energy consumption by 15-30% compared to conventional classification equipment. The energy saved translates directly to lower operating costs and reduced carbon footprint.

Elimination of Screen Blinding

Conventional screen classifiers suffer from blinding — particles lodging in mesh openings, progressively reducing effective open area and classification efficiency. The ceramic grading wheel, being an aerodynamic classifier, has no physical mesh to blind. This ensures consistent classification performance throughout the production run, even with cohesive, fibrous, or high-moisture powders that would rapidly blind a screen.

Consistent Cut Point Over Service Life

Metallic grading wheels gradually wear, with blade edges rounding and channel dimensions increasing over time. This progressive wear causes the effective cut point to drift, requiring frequent recalibration and eventually demanding premature wheel replacement. Ceramic grading wheels, with wear rates typically 10-50x lower than metals, maintain their original blade geometry far longer. The result is a stable cut point over thousands of operating hours with minimal adjustment.

Elimination of Metal Contamination

Every metallic grading wheel sheds microscopic metal particles into the product stream through abrasive and erosive wear. In sensitive applications — battery cathode materials, pharmaceutical APIs, electronic ceramics — even trace iron contamination can render entire batches unusable. A ceramic grading wheel eliminates this contamination vector entirely, ensuring product purity is maintained throughout the classification process.

advanced ceramics Production

Precision classification of alumina, zirconia, silicon nitride, and silicon carbide precursor powders. Ceramic grading wheels ensure narrow PSD for consistent sintering behavior and final component properties. Cut points of 0.5-5 um are typical, with classification sharpness directly affecting green body density and fired microstructure.

Lithium-Ion Battery Materials

Classification of cathode active materials (NMC, LFP, LCO) and anode graphite powders. Ceramic grading wheels eliminate iron contamination that would degrade electrochemical performance. Narrow PSD control ensures consistent electrode coating quality and battery cell uniformity in large-format cell manufacturing.

Pharmaceutical Micronization

Classification of micronized active pharmaceutical ingredients (APIs) and excipients. Ceramic grading wheels meet GMP requirements with clean-in-place (CIP) compatible designs, full material traceability, and zero cross-contamination risk. Cut points as fine as 1-3 um enable enhanced bioavailability formulations.

Toners and Printing Inks

Classification of toner particles for laser printers and copiers, where particle size directly determines print resolution, transfer efficiency, and fusing quality. Ceramic grading wheels achieve the narrow 5-10 um particle size distribution required for modern high-resolution printing systems.

Pigments and Coatings

Classification of titanium dioxide (TiO2), iron oxide, carbon black, and organic pigments for paints, coatings, and plastics. Ceramic grading wheels provide consistent color strength through tight PSD control while resisting the highly abrasive nature of pigment particles. Typical cut points range from 1-10 um.

Industrial Minerals Processing

Ultra-fine classification of calcium carbonate (GCC/PCC), kaolin, talc, barite, and silica for paper, plastics, rubber, and construction materials. High-throughput ceramic grading wheels (up to 20 t/h per unit) handle production-scale volumes while maintaining cut-point accuracy over multi-year service intervals.

Rare Earth and Magnetic Materials

Classification of neodymium-iron-boron (NdFeB) magnet powders, samarium-cobalt powders, and rare earth polishing compounds. The high density of these materials demands robust ceramic grading wheels with zirconia or silicon carbide construction. Metal-free classification prevents magnetic property degradation.

Food and Nutraceutical Powders

Classification of food ingredients, nutritional supplements, spice powders, and functional food additives. Ceramic grading wheels with FDA-compliant materials and sanitary designs ensure food safety while achieving precise particle size targets for solubility, mouthfeel, and bioavailability optimization.

Rotational Speed Control

The grading wheel rotational speed is the primary control parameter for adjusting the cut point. A quadratic relationship exists between RPM and centrifugal force: doubling the RPM quadruples the force. Variable frequency drives (VFDs) with closed-loop speed control provide the precision needed for fine cut-point adjustments. For submicron classification, speed stability of +/- 0.1% is recommended to prevent cut-point drift.

Air Flow Rate and Distribution

Radial air velocity through the grading wheel must be uniform across the entire blade height to ensure consistent classification. Flow straighteners, inlet guide vanes, and properly designed plenum chambers upstream of the wheel are essential. Non-uniform flow creates zones of differing cut points, broadening the overall PSD. The air-to-solids ratio (typically 5-15 m3 of air per kg of feed) must be maintained within the designed range.

Feed Material Properties

Feed particle size distribution, density, shape, and moisture content all influence classification performance. Agglomerated or cohesive powders require dispersion upstream of the grading wheel — typically via air jets, mechanical dispersers, or dispersant additives. Feed moisture exceeding 1-2% can cause particle adhesion to blade surfaces, degrading classification efficiency and potentially causing imbalance.

Wheel-to-Housing Gap

The radial clearance between the grading wheel outer diameter and the classifier housing inner diameter is a critical dimension. Gaps that are too large permit coarse particle bypass; gaps that are too small risk contact during thermal expansion or vibration events. Typical design clearances range from 0.5-2.0 mm depending on wheel diameter, with labyrinth or gas-purged seals to prevent bypass.

Dynamic Balancing

At operating speeds of 5,000-15,000 RPM, even minor rotor imbalance generates excessive bearing loads and vibration. Ceramic grading wheels are dynamically balanced to ISO 1940 G2.5 or better. Post-installation balancing checks should be performed after any blade replacement, cleaning, or impact event. Continuous vibration monitoring systems can provide early warning of developing imbalance.

Routine Inspection Schedule

Implement a structured inspection program including: daily vibration monitoring, weekly visual inspection of blade condition (accessible without full disassembly), monthly measurement of blade edge wear using precision gauges or laser profilometry, and quarterly dynamic balancing verification. Document all measurements to establish wear-rate trends and predict replacement intervals.

Cleaning and De-Blinding

While ceramic grading wheels resist blinding better than screens, certain materials (waxy, hygroscopic, or electrostatic powders) may build up on blade surfaces over time. Periodic cleaning using dry ice blasting, ultrasonic baths, or compatible solvent rinsing restores aerodynamic profiles. Avoid abrasive cleaning methods that could damage the precision blade surface finish.

Bearing and Spindle Maintenance

The high-speed spindle supporting the ceramic grading wheel requires dedicated maintenance. Grease-lubricated bearings should be relubricated per manufacturer specifications. Oil-mist or oil-jet lubricated spindles require oil quality and filtration monitoring. Bearing replacement intervals are typically 8,000-15,000 operating hours depending on speed, load, and lubrication regime.

Blade Replacement Strategy

For modular grading wheels with replaceable blades, maintain a spare blade inventory equal to 20-30% of the total blade count. Replace blades showing wear exceeding 10-15% of the original dimension. Always replace blades in balanced sets to maintain dynamic balance. Record blade serial numbers and positions to track wear patterns and identify potential flow distribution issues.

Q: What is the finest cut point achievable with a ceramic grading wheel?

With optimized zirconia-based ceramic grading wheels operating at maximum RPM and carefully controlled air flow, cut points as fine as 0.5-1.0 um (d₅₀) are achievable in industrial applications. Achieving submicron classification requires meticulous attention to feed dispersion, air flow uniformity, rotor balance, and housing geometry. Laboratory-scale classifiers with smaller diameter wheels (50-100 mm) can achieve even finer cuts approaching 0.2-0.3 um.

Q: How do I determine the correct grading wheel diameter for my application?

Wheel diameter selection balances three factors: desired throughput, target cut point, and available classifier housing dimensions. Larger diameters (400-600 mm) accommodate higher air volumes and throughputs (5-20 t/h) but may have slightly coarser minimum cut points due to tip speed limitations. Smaller diameters (100-250 mm) achieve finer cut points but at lower throughput. As a general guideline, select the smallest diameter that meets your throughput requirement to maximize cut-point fineness and classification sharpness.

Q: Can a ceramic grading wheel handle high-temperature powder streams?

Yes. Alumina-based ceramic grading wheels can operate continuously at gas stream temperatures up to 500 degrees C, and silicon carbide wheels can withstand up to 800 degrees C. However, the full classifier system must be designed for high-temperature operation, including the spindle bearings, shaft seals, housing materials, and thermal expansion compensation. For applications above 300 degrees C, ceramic-to-metal joint interfaces require careful design to manage differential thermal expansion.

Q: How long does a ceramic grading wheel last before replacement is needed?

Service life depends heavily on the abrasive nature of the processed material. For non-abrasive materials (talc, calcium carbonate, organic powders), alumina wheels typically achieve 12,000-20,000 operating hours. For moderately abrasive materials (silica, feldspar, alumina powders), expect 6,000-12,000 hours. For highly abrasive materials (silicon carbide, tungsten carbide, diamond precursor powders), silicon carbide wheels may last 3,000-8,000 hours. Modular blade replacement can extend overall wheel hub life to 40,000+ hours.

Q: What are the signs that a ceramic grading wheel needs maintenance or replacement?

Key indicators include: (1) progressive broadening of the fine product PSD despite unchanged operating parameters; (2) increased vibration amplitude on bearing housing monitors; (3) visible wear or rounding of blade leading edges upon inspection; (4) increased coarse fraction in the fines outlet — a sign of incomplete classification; (5) audible changes in operating sound signature; and (6) increased motor current draw at the same RPM setpoint, indicating higher aerodynamic drag from worn blade profiles.

Q: Is a ceramic grading wheel compatible with existing metallic classifier housings?

In most cases, yes. Ceramic grading wheels are designed as direct replacements for metallic wheels in many standard air classifier models. However, retrofitting requires verification of: shaft interface dimensions (taper, keyway, or flange bolt pattern), overall wheel diameter and height clearance within the housing, seal gap compatibility, and dynamic balance specifications for the existing spindle. Always consult the grading wheel manufacturer for a retrofit compatibility assessment before procurement.

Q: How does the ceramic grading wheel contribute to overall milling circuit energy efficiency?

The ceramic grading wheel improves circuit efficiency through three mechanisms: (1) sharper classification reduces the recirculating load, meaning less material is unnecessarily reground — this alone can reduce total circuit energy consumption by 15-30%; (2) lower recirculation reduces mill volumetric loading, decreasing grinding media and liner wear; (3) consistent cut-point stability eliminates the need for conservative operating margins that waste energy. In closed-circuit milling operations, the grading wheel often has a greater impact on overall energy efficiency than the mill itself.
